FKS25
- Free discharge safety valves
- Pipe discharge safety valves
- High pressure safety valves
- PVC safety valves

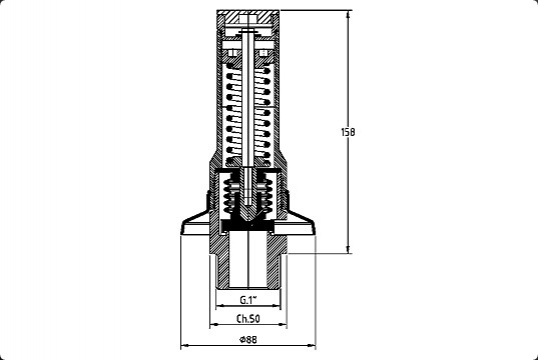

| Tipo : Type : | FKS25 | do: 25mm | |
|---|---|---|---|
| Omologazione Homologation | PN | Coefficiente efflusso ridotto Low flow coefficient | Campo di taratura Setting range |
| E.D. 2014/68/EU IV Cat.(PED) | 10 | 0,445 | 0,3 - 3,0 bar |
| EAC | / | / | / |
| ATEX Ex II 2 G c | / | / | / |
| ATEX Ex II 2 D c | / | / | / |
| ASME VIII Div.1 | / | / | / |
| Canadian Reg. CRN | / | / | / |
| CONFIGURAZIONE - CONFIGURATION | |||
| Materiale Material |
Ottone Brass |
Mista Ottone-Acciaio inox Mixed Brass-Stainless steel |
Acciaio inox Stainless steel |
| Modelli Model |
Con ghiera | / | / |
| With ring nut | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Sedi di Tenuta Seal System |
N.B.R. (Std) -10 / + 100 °C | / | / |
| E.P.D.M. -50 / + 150 °C | / | / | |
| VITON -20 / +200 °C | / | / | |
| SILICON -60 / +200 °C | / | / | |
| TEFLON -196 / +250 °C | / | / | |
| KALREZ -20 / +250 °C | / | / | |
| / | / | / | |
| Connessione Entrata Inlet Connection |
G.1" - 1"1/4 ISO228 | / | / |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Connessione Uscita Outlet Connection |
/ | / | / |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. |
|||
| Note: | |||
