E5/LS
- Free discharge safety valves
- Pipe discharge safety valves
- High pressure safety valves
- PVC safety valves

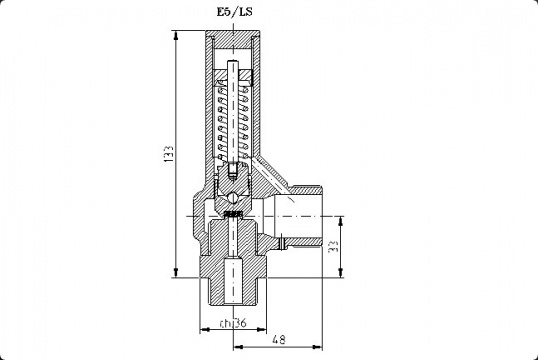

E5/LS - Weight Kg. 0,8
| Tipo : Type : | E5/LS | do: 5mm | |
|---|---|---|---|
| Omologazione Homologation | PN | Coefficiente efflusso ridotto Low flow coefficient | Campo di taratura Setting range |
| E.D. 2014/68/EU IV Cat.(PED) | 700 | 0,828 | 100,0 - 300,0 bar |
| EAC | / | / | / |
| ATEX Ex II 2 G c | 700 | 0,828 | 100,0 - 300,0 bar |
| ATEX Ex II 2 D c | 700 | 0,828 | 100,0 - 300,0 bar |
| ASME VIII Div.1 | / | / | / |
| Canadian Reg. CRN | / | / | / |
| CONFIGURAZIONE - CONFIGURATION | |||
| Materiale Material |
Ottone Brass |
Mista Ottone-Acciaio inox Mixed Brass-Stainless steel |
Acciaio inox Stainless steel |
| Modelli Model |
/ | / | Senza Ghiera |
| / | / | Without ring nut | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Sedi di Tenuta Seal System |
/ | / | PEEK (Std) -40 / + 200 °C |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Connessione Entrata Inlet Connection | / | / | G.1/2" - 3/4" ISO228 |
| / | / | R.1/2" - 3/4" EN10226 | |
| / | / | 1/2" - 3/4" NPT | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Connessione Uscita Outlet Connection | / | / | G.1" ISO228 |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. |
|||
| Note: |
|||
