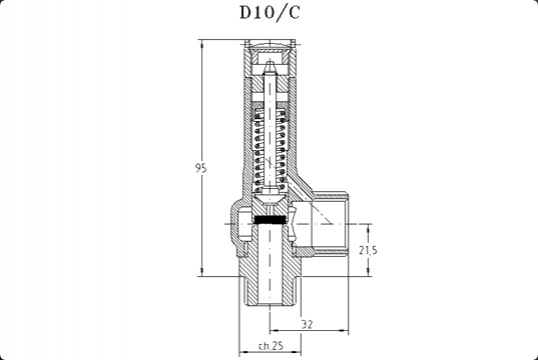

D10/C
- Free discharge safety valves
- Pipe discharge safety valves
- High pressure safety valves
- PVC safety valves
| Tipo : Type : | D10/C | do: 10mm | |
|---|---|---|---|
| Omologazione Homologation | PN | Coefficiente efflusso ridotto Low flow coefficient | Campo di taratura Setting range |
| E.D. 2014/68/EU IV Cat.(PED) | 60 | 0,77; >3 bar 0,86 | 0,3 - 60,0 bar |
| EAC | 60 | 0,77; >3 bar 0,86 | 0,3 - 60,0 bar |
| ATEX Ex II 2 G c | 60 | 0,77; >3 bar 0,86 | 0,3 - 60,0 bar |
| ATEX Ex II 2 D c | 60 | 0,77; >3 bar 0,86 | 0,3 - 60,0 bar |
| ASME VIII Div.1 | 40 | 0,629 | 1,0 - 40,0 bar |
| Canadian Reg. CRN | 40 | 0,629 | 1,0 - 40,0 bar |
| CONFIGURAZIONE - CONFIGURATION | |||
| Materiale Material |
Ottone Brass |
Mista Ottone-Acciaio inox Mixed Brass-Stainless steel |
Acciaio inox Stainless steel |
| Modelli Model |
Con ghiera | Con ghiera | Con ghiera |
| With ring nut | With ring nut | With ring nut | |
| Senza Ghiera | Senza Ghiera | Senza Ghiera | |
| Without ring nut | Without ring nut | Without ring nut | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Sedi di Tenuta Seal System |
N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C |
| E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | |
| VITON -20 / +200 °C | VITON -20 / +200 °C | VITON -20 / +200 °C | |
| SILICON -60 / +200 °C | SILICON -60 / +200 °C | SILICON -60 / +200 °C | |
| TEFLON -196 / +250 °C | TEFLON -196 / +250 °C | TEFLON -196 / +250 °C | |
| KALREZ -20 / +250 °C | KALREZ -20 / +250 °C | KALREZ -20 / +275 °C | |
| / | Metal -196 / +250 °C | Metal -196 / +450 °C | |
| Connessione Entrata Inlet Connection |
G.3/8" - 1/2" ISO228 | G.3/8" - 1/2" ISO228 | G.3/8" - 1/2" ISO228 |
| R.3/8" - 1/2" EN10226 | R.3/8" - 1/2" EN10226 | R.3/8" - 1/2" EN10226 | |
| 3/8" - 1/2" NPT | 3/8" - 1/2" NPT | 3/8" - 1/2" NPT | |
| DN15 PN16-40-60 | 3/4" Tri Clamp | 3/4" Tri Clamp | |
| 1/2" 150-300 lb | DN15 PN16-40-60 | DN15 PN16-40-60 | |
| / | 1/2" 150-300 lb | 1/2" 150-300 lb | |
| / | / | / | |
| Connessione Uscita Outlet Connection |
G.3/4" ISO228 | G.3/4" ISO228 | G.3/4" ISO228 |
| DN20 PN16-40-60 | 1" - 1"1/2 Tri Clamp | 1" - 1"1/2 Tri Clamp | |
| / | DN20 PN16-40-60 | DN20 PN16-40-60 | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. |
|||
| Note: | |||
