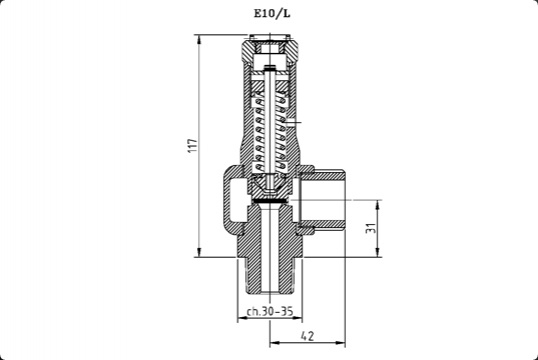

E10/L
- Free discharge safety valves
- Pipe discharge safety valves
- High pressure safety valves
- PVC safety valves
|
Tipo : Type : |
E10/L | do: 10mm | |
|---|---|---|---|
|
Omologazione Homologation |
PN |
Coefficiente efflusso ridotto Low flow coefficient |
Campo di taratura Setting range |
| E.D. 2014/68/EU IV Cat.(PED) | 100 | 0,86 | 0,3 - 100,0 bar |
| EAC | 100 | 0,86 | 0,3 - 100,0 bar |
| ATEX Ex II 2 G c | 100 | 0,86 | 0,3 - 100,0 bar |
| ATEX Ex II 2 D c | 100 | 0,86 | 0,3 - 100,0 bar |
| ASME VIII Div.1 | 150 | 0,629 | 1,0 - 106,0 bar |
| Canadian Reg. CRN | 150 | 0,629 | 1,0 - 106,0 bar |
| CONFIGURAZIONE - CONFIGURATION | |||
|
Materiale Material |
Ottone Brass |
Mista Ottone-Acciaio inox Mixed Brass-Stainless steel |
Acciaio inox Stainless steel |
| ModelliModel | Con ghiera | Con ghiera | Con ghiera |
| With ring nut | With ring nut | With ring nut | |

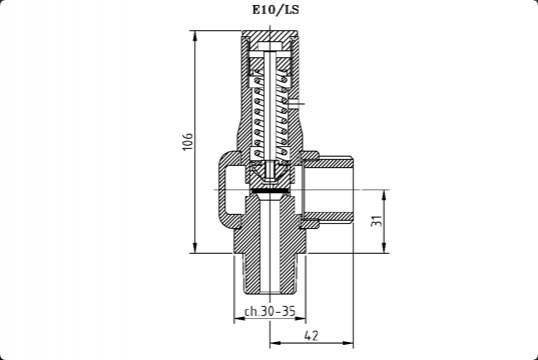

| Senza Ghiera | Senza Ghiera | Senza Ghiera | |
| Without ring nut | Without ring nut | Without ring nut | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Sedi di TenutaSeal System | N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C |
| E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | |
| VITON -20 / +200 °C | VITON -20 / +200 °C | VITON -20 / +200 °C | |
| SILICON -60 / +200 °C | SILICON -60 / +200 °C | SILICON -60 / +200 °C | |
| TEFLON -196 / +250 °C | TEFLON -196 / +250 °C | TEFLON -196 / +250 °C | |
| KALREZ -20 / +250 °C | KALREZ -20 / +250 °C | KALREZ -20 / +275 °C | |
| / | Metal -196 / +250 °C | Metal -196 / +450 °C | |
| Connessione EntrataInlet Connection | G.1/2" - 3/4" ISO228 | G.1/2" - 3/4" ISO228 | G.1/2" - 3/4" ISO228 |
| R.1/2" - 3/4" EN10226 | R.1/2" - 3/4" EN10226 | R.1/2" - 3/4" EN10226 | |
| 1/2" - 3/4" NPT | 1/2" - 3/4" NPT | 1/2" - 3/4" NPT | |
| DN20-25 PN16-100 | 1" - 1"1/2 Tri Clamp | 1" - 1"1/2 Tri Clamp | |
| 3/4" - 1" 150-900 lb | DN20-25 PN16-100 | DN20-25 PN16-100 | |
| / | 3/4" - 1" 150-900 lb | 3/4" - 1" 150-900 lb | |
| / | / | / | |
| Connessione UscitaOutlet Connection | G.1" ISO228 | G.1" ISO228 | G.1" ISO228 |
| DN25 PN16-100 | 1"1/2 Tri Clamp | 1"1/2 Tri Clamp | |
| 1" 150-900 lb | DN25 DIN405-11851 | DN25 DIN405-11851 | |
| / | DN25 PN16-100 | DN25 PN16-100 | |
| / | 1" 150-900 lb | 1" 150-900 lb | |
| / | / | / | |
| / | / | / | |
|
A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. |
|||
| Note: | |||
