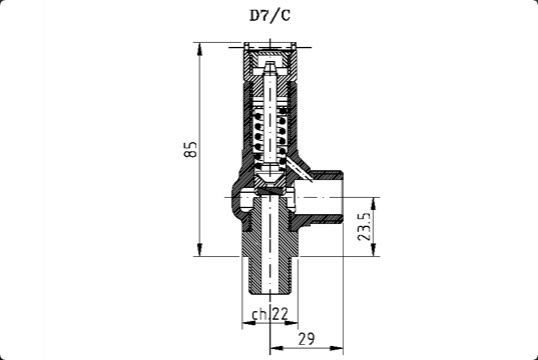

D7/C
| 型号 | D7/C | 通径: 7mm | |
|---|---|---|---|
| 认证 | 公称压力 | 低流量系数 | 泄放压力范围 |
| E.D. 2014/68/EU IV Cat.(PED) | 60 | 0,85 | 0,3 - 60,0 bar |
| EAC | 60 | 0,85 | 0,3 - 60,0 bar |
| ATEX Ex II 2 G c | 60 | 0,85 | 0,3 - 60,0 bar |
| ATEX Ex II 2 D c | 60 | 0,85 | 0,3 - 60,0 bar |
| ASME VIII Div.1 | 40 | 0,629 | 1,0 - 40,0 bar |
| Canadian Reg. CRN | 40 | 0,629 | 1,0 - 40,0 bar |
| 参数设定 | |||
| 材质 | 铜 | 铜和不锈钢组合 | 不锈钢 |

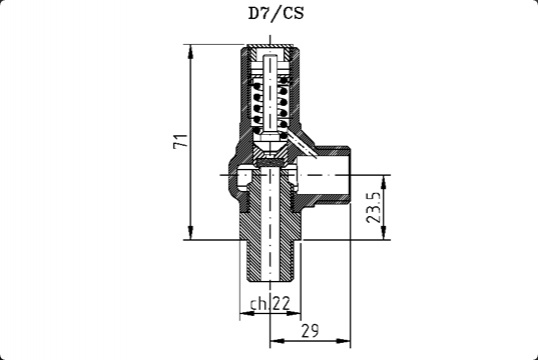

| 样式 | 带手动开启旋钮 | 带手动开启旋钮 | 带手动开启旋钮 |
| 不带手动开启旋钮 | 不带手动开启旋钮 | 不带手动开启旋钮 | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| 密封材质 | N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C | N.B.R. (Std) -10 / + 100 °C |
| E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | E.P.D.M. -50 / + 150 °C | |
| VITON -20 / +200 °C | VITON -20 / +200 °C | VITON -20 / +200 °C | |
| SILICON -60 / +200 °C | SILICON -60 / +200 °C | SILICON -60 / +200 °C | |
| TEFLON -196 / +250 °C | TEFLON -196 / +250 °C | TEFLON -196 / +250 °C | |
| KALREZ -20 / +250 °C | KALREZ -20 / +250 °C | KALREZ -20 / +275 °C | |
| / | / | / | |
| 入口规格 | G.1/4" - 3/8" ISO228 | G.1/4" - 3/8" ISO228 | G.1/4" - 3/8" ISO228 |
| R.1/4" - 3/8" EN10226 | R.1/4" - 3/8" EN10226 | R.1/4" - 3/8" EN10226 | |
| 1/4" - 3/8" NPT | 1/4" - 3/8" NPT | 1/4" - 3/8" NPT | |
| / | 3/4" Tri Clamp | 3/4" Tri Clamp | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| 出口规格 | G.1/2" ISO228 | G.1/2" ISO228 | G.1/2" ISO228 |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Nuova General Instruments Srl以上安全阀产品己取得各种权威机构的认证：INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. | |||
| Note: | |||
