PVC10
| 型号 | PVC10 | 通径：10 mm | |
|---|---|---|---|
|
Omologazione 认证 |
公称压力 |
低流量系数 |
泄放压力范围 |
| E.D. 2014/68/EU IV Cat.(PED) | 16 | 0,774 | 0,1 - 16,0 bar |
| EAC | / | / | / |
| ATEX Ex II 2 G c | / | / | / |
| ATEX Ex II 2 D c | / | / | / |
| ASME VIII Div.1 | / | / | / |
| Canadian Reg. CRN | / | / | / |
| 参数设定 | |||
| 材质 |
PVC PVC |
||
| 样式 | 不带手动开启旋钮 | ||

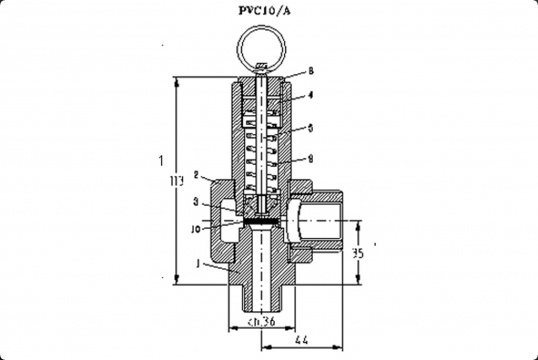

| 带手动开启拉环 | |||
| / | |||
| / | |||
| / | |||
| / | |||
| / | |||
| / | |||
| 密封 | N.B.R. (Std) -10 / + 85 °C | / | / |
| E.P.D.M. -15 / + 85 °C | / | / | |
| VITON -15 / + 85 °C | / | / | |
| SILICONE -15 / + 85 °C | / | / | |
| PTFE -15 / + 85 °C | / | / | |
| KALREZ -15 / + 85 °C | / | / | |
| / | / | / | |
| 入口规格 | G. 1/2" - 3/4" ISO228 | / | / |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| 出口规格 | G. 1" ISO228 | / | / |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Nuova General Instruments Srl以上产品己取得各种权威机构的认证：INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. | |||
|
Note: |
|||
