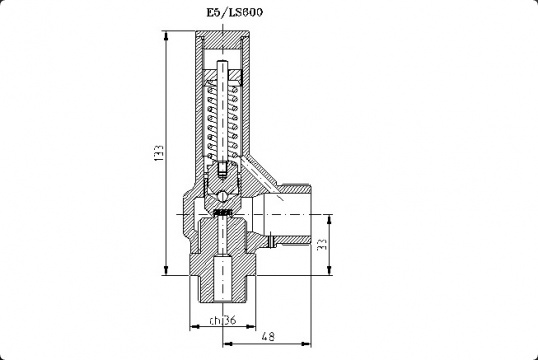

E5/LS600
| 型号 | E5/LS600 | 通径: 5mm | |
|---|---|---|---|
| 认证 | 公称压力 | 低流量系数 | 泄放压力范围 |
| E.D. 2014/68/EU IV Cat.(PED) | 700 | 0,828 | 301,0 - 600,0 bar |
| EAC | / | / | / |
| ATEX Ex II 2 G c | 700 | 0,828 | 301,0 - 600,0 bar |
| ATEX Ex II 2 D c | 700 | 0,828 | 301,0 - 600,0 bar |
| ASME VIII Div.1 | / | / | / |
| Canadian Reg. CRN | / | / | / |
| 参数设定 | |||
| 材质 | 铜 | 铜和不锈钢组合 | 不锈钢 |
| 样式 | / | / | 不带手动开启旋钮 |
| / | / | ||
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| 密封 | / | / | PEEK (Std) -40 / + 200 °C |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| 入口规格 | / | / | G.3/4" ISO228 |
| / | / | R.3/4" EN10226 | |
| / | / | 3/4" NPT | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| 出口规格 | / | / | G.1" ISO228 |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| / | / | / | |
| Nuova General Instruments Srl以上产品己取得各种权威机构的认证：INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register. | |||
| Note: | |||
